Faster Diagnosis of Multiple Sclerosis With New MRI Technique

A new way of using MRI scanners to look for evidence of multiple sclerosis in the brain has been successfully tested by researchers at The University of Nottingham and Nottingham University Hospitals NHS Trust.

Multiple sclerosis (MS) is a neurological condition which affects around 100,000 people in the UK. It is notoriously difficult to diagnose as it has many symptoms but not all sufferers experience all of them and the disease can progress at different rates. MRI scans have been used as a diagnostic tool to detect white matter lesions in the brain but these are not always an indicator of the disease.

Now a research team at Nottingham has found a way to use clinical MRI to distinguish between MS lesions and other brain white spots which are found in MS. The study is published in the Multiple Sclerosis Journal.

They have used a clinical MRI scanner of the type all neuroscience centres have to carry out a special type of scan called a T2-weighted imaging process which is able to reveal lesions in the brain’s white matter that are centred on a vein — a known indicator of MS.

Leading the work, Dr Nikos Evangelou, said: “We already knew that large research MRI scanners could detect the proportion of lesions with a vein in the brain’s white matter, but these scanners are not clinically available. So we wanted to find out whether a single brain scan in an NHS hospital scanner could also be effective in distinguishing between patients known to have MS and patients known to have non-MS brain lesions. We are excited to reveal that our results show that clinical application of this technique could supplement existing diagnostic methods for MS.”

A total of 40 patients were recruited from the neurology outpatients’ department of Nottingham University Hospitals NHS Trust. Initially a test cohort of 10 patients with MS and 10 patients with non-MS white brain matter lesions were scanned. Anonymised scans were analysed blinded to clinical data and simple diagnostic rules were devised. The same rules were applied to a validation cohort of 20 patients (13 with MS and 7 with other lesions) by a blinded observer.

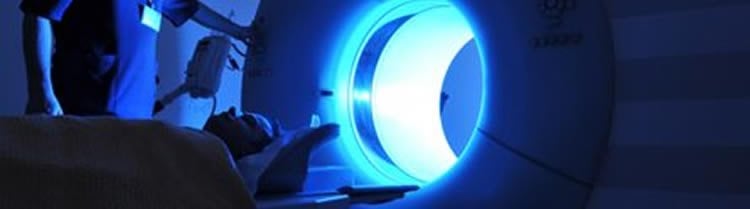

Image shows an MRI machine.
The researchers used a clinical MRI scanner of the type all neuroscience centres have to carry out a special type of scan called a T2-weighted imaging process which is able to reveal lesions in the brain’s white matter that are centred on a vein — a known indicator of MS.. Image is adapted from the University of Nottingham press release.

Within the test cohort, all patients with MS had central veins in more than 45 per cent of brain lesions, while the rest had central veins visible in less than 45 per cent of lesions. Then, by applying the same diagnostic rules to the second cohort, all the remaining patients were correctly categorised into MS or non-MS, by the blinded observer, taking less than two minutes per scan.

The new study is significant because currently among patients referred to MS treatment centres with suspected MS, fewer than 50 per cent are found to have it. This shows that diagnosing MS in a significant minority of cases can be challenging.

The Nottingham University team has now started a new study examining patients with real uncertainty about the diagnosis and aim to extend the study in other UK towns so more patients can participate in this important research. It is possible that in less than two years we will know if this new test is accurate as it appears to be. In that case, the way we will be diagnosing MS will probably be quicker and more reliable. The Nottingham team has already presented their data in the US and a similar US based study is planned based on the Nottingham results.

About this multiple sclerosis research

Source: Emma Rayner – University of Nottingham
Image Credit: The image is adapted from the University of Nottingham press release
Original Research: Abstract for “Imaging central veins in brain lesions with 3-T T2*-weighted magnetic resonance imaging differentiates multiple sclerosis from microangiopathic brain lesions” by Niraj Mistry, Rasha Abdel-Fahim, Amal Samaraweera, Olivier Mougin, Emma Tallantyre, Christopher Tench, Tim Jaspan, Peter Morris, Paul S Morgan, and Nikos Evangelou in Multiple Sclerosis Journal. Published online December 10 2015 doi:10.1177/1352458515616700


Abstract

Imaging central veins in brain lesions with 3-T T2*-weighted magnetic resonance imaging differentiates multiple sclerosis from microangiopathic brain lesions

Background: White matter lesions are frequently detected using brain magnetic resonance imaging (MRI) performed for various indications. Most are microangiopathic, but demyelination, including multiple sclerosis (MS), is an important cause; conventional MRI cannot always distinguish between these pathologies. The proportion of lesions with a central vein on 7-T T2*-weighted MRI prospectively distinguishes demyelination from microangiopathic lesions.

Objective: To test whether 3-T T2*-weighted MRI can differentiate MS from microangiopathic brain lesions.

Methods: A total of 40 patients were studied. Initially, a test cohort of 10 patients with MS and 10 patients with microangiopathic white matter lesions underwent 3-T T2*-weighted brain MRI. Anonymised scans were analysed blind to clinical data, and simple diagnostic rules were devised. These rules were applied to a validation cohort of 20 patients (13 with MS and 7 with microangiopathic lesions) by a blinded observer.

Results: Within the test cohort, all patients with MS had central veins visible in >45% of brain lesions, while the rest had central veins visible in <45% of lesions. By applying diagnostic rules to the validation cohort, all remaining patients were correctly categorised.

Conclusion: 3-T T2*-weighted brain MRI distinguishes perivenous MS lesions from microangiopathic lesions. Clinical application of this technique could supplement existing diagnostic algorithms.

“Imaging central veins in brain lesions with 3-T T2*-weighted magnetic resonance imaging differentiates multiple sclerosis from microangiopathic brain lesions” by Niraj Mistry, Rasha Abdel-Fahim, Amal Samaraweera, Olivier Mougin, Emma Tallantyre, Christopher Tench, Tim Jaspan, Peter Morris, Paul S Morgan, and Nikos Evangelou in Multiple Sclerosis Journal. Published online December 10 2015 doi:10.1177/1352458515616700
