Laser Technology Opens Blood-Brain Barrier to Chemotherapy

Technology may improve treatment for deadly brain cancer.

Using a laser probe, neurosurgeons at Washington University School of Medicine in St. Louis have opened the brain’s protective cover, enabling them to deliver chemotherapy drugs to patients with a form of deadly brain cancer.

In a pilot study, 14 patients with glioblastoma – the most common and aggressive type of brain cancer – underwent minimally invasive laser surgery to treat a recurrence of their tumors. Heat from the laser is known to kill brain tumor cells but, unexpectedly, the researchers found that the technology can penetrate the blood-brain barrier.

“The laser treatment kept the blood-brain barrier open for four to six weeks, providing us with a therapeutic window of opportunity to deliver chemotherapy drugs to the patients,” said co-corresponding author Eric C. Leuthardt, MD, a Washington University professor of neurosurgery who treats patients at Barnes-Jewish Hospital. “This is crucial because most chemotherapy drugs can’t get past the protective barrier, greatly limiting treatment options for patients with brain tumors.

“We are closely following patients in the trial,” said Leuthardt, who also is a Siteman Cancer Center member. “Our early results indicate that the patients are doing much better on average, in terms of survival and clinical outcomes, than what we would expect. We are encouraged but very cautious because additional patients need to be evaluated before we can draw firm conclusions.”

The study is published online Feb. 24 in the journal PLOS ONE.

Glioblastomas are one of the most difficult cancers to treat. Most patients diagnosed with this type of brain tumor survive just 15 months, according to the American Cancer Society.

The new research is part of a larger phase II clinical trial that will involve 40 patients. Twenty patients were enrolled in the pilot study, 14 of whom were found to be suitable candidates for the minimally invasive laser surgery, a technology that Leuthardt helped pioneer.

The laser technology was approved by the Food and Drug Administration in 2009 as a surgical tool that can be used to treat brain tumors. But the new research marks the first time the laser has been shown to disrupt the blood-brain barrier, which shields the brain from harmful toxins but inadvertently blocks potentially helpful drugs, such as chemotherapy.

As part of the trial, a widely used chemotherapy – doxorubicin – was given intravenously to 13 patients in the weeks following the laser surgery. Preliminary data indicate that 12 patients showed no evidence of tumor progression during the short, 10-week time frame of the study. One patient experienced tumor growth before chemotherapy was delivered; the tumor in another patient progressed after chemotherapy was administered.

The laser surgery was well-tolerated by the patients in the trial. Most patients went home one to two days afterward and none experienced severe complications. The surgery is performed while a patient lies in an MRI scanner, providing the neurosurgical team with a real-time look at the tumor. Using an incision of only 3 millimeters – about the thickness of two pennies – a neurosurgeon robotically inserts the laser to heat up and kill brain tumor cells at a temperature of about 150 degrees Fahrenheit.

“The laser kills tumor cells, which we anticipated,” said Leuthardt, who also directs the Department of Neurosurgery’s Center for Innovation in Neuroscience and Technology and the Brain Laser Center. “But, surprisingly, while reviewing MRI scans of our patients, we noticed changes near the former tumor site that looked consistent with the breakdown of the blood-brain barrier.” He then confirmed and further studied these imaging findings with co-author Joshua Shimony, MD, PhD, an associate professor of radiology at Washington University.

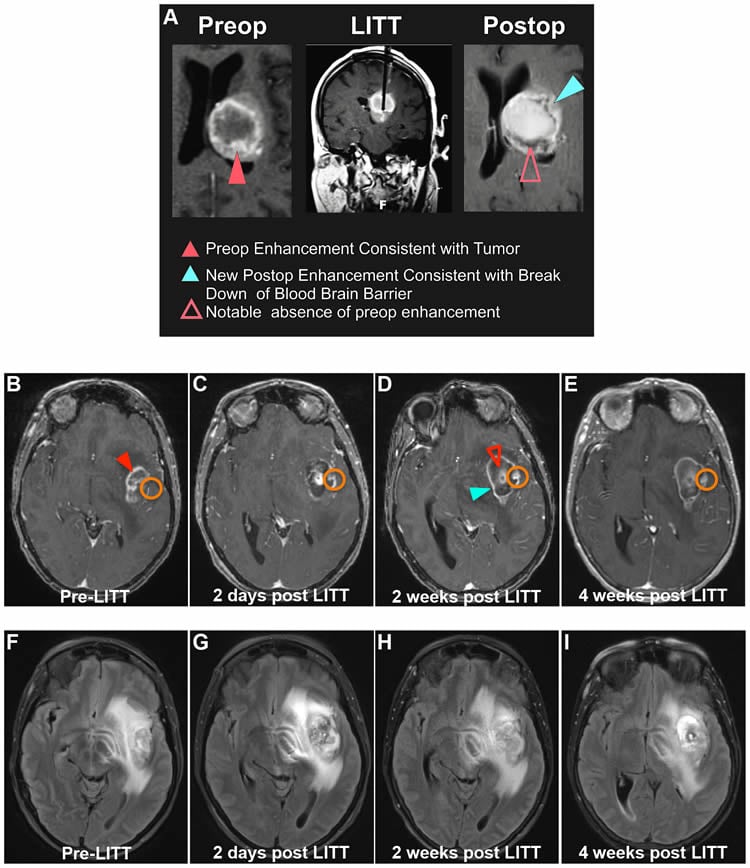

Image shows brain scans.
A) A woman with a left thalamic GBM treated with LITT underwent axial and coronal T1-weighted post-contrast enhanced MR images of the brain pre-LITT, during LITT and 48 hours post LITT. (B-I) A woman with a left insula GBM underwent axial T1-weighted post-contrast enhanced (B-E) and axial FLAIR-weighted (F-I) MR images of the brain pre-LITT and within 48 hours post LITT, 2 weeks post LITT, and 4 weeks post LITT. In both cases, the enhancing tumor (solid red arrowheads in A and B) is replaced by a central zone of T1-weighted signal hyperintensity (open red arrowheads in A and D) and a faint, new discontinuous rim of enhancement extending beyond the original tumor associated enhancing rim (solid blue arrowheads in A and D). The rim of contrast enhancement intensifies at 2 weeks post LITT (D) and remains stable at 4 weeks post LITT (E). Perilesional edema evaluated on FLAIR-weighted images is slightly increased between the pre-treatment (F) and immediate post-treatment (G) images, increases to a maximum point on the 2-week post-treatment images (H) and improves slightly by the 4-week images (I). The orange circles denote a representative ROI used to calculate temporal progression of Ktrans after LITT Credit: The researchers/PLOS ONE.

The researchers, including co-corresponding author David Tran, MD, PhD, a neuro-oncologist who is now at the University of Florida, performed follow-up testing, which showed that the degree of permeability through the blood-brain barrier peaked one to two weeks after surgery but that the barrier remained open for up to six weeks.

Other successful attempts to breach the barrier have left it open for only a short time – about 24 hours – not long enough for chemotherapy to be consistently delivered – or have resulted in only modest benefits. In contrast, the laser technology leaves the barrier open for weeks – long enough for patients to receive multiple treatments with chemotherapy. And the laser only opens the barrier near the tumor, leaving the protective cover in place in other areas of the brain. This has the potential to limit the harmful effects of chemotherapy drugs in other areas of the brain, the researchers said.

The findings also suggest that other exciting approaches such as cancer immunotherapy – which harnesses cells of the immune system to seek out and destroy cancer – also may be useful for patients with glioblastomas. The researchers are planning another clinical trial that combines the laser technology with chemotherapy and immunotherapy as well as trials to test targeted cancer drugs that normally can’t breach the blood-brain barrier.

“We are hopeful this technology opens new avenues to treating these devastating brain tumors that cause great suffering for patients and their families,” Leuthardt said.

[divider]About this brain cancer and technology research[/divider]

Funding Funding for this research was provided by the National Cancer Institute of the National Institutes of Health (NIH), grant number K08CA160824; The Foundation for Barnes-Jewish Hospital; and Washington University School of Medicine in St. Louis.

Source: Jim Goodwin – WUSTL
Image Source: The image is credited to the researchers/PLOS ONE.
Original Research: Full open access research for “Hyperthermic laser ablation of recurrent glioblastoma leads to temporary disruption of the peritumoral blood brain barrier” by Eric C. Leuthardt, Chong Duan, Michael J. Kim, Jian L. Campian, Albert H. Kim, Michelle M. Miller-Thomas, Joshua S. Shimony, and David D. Tran in PLOS ONE. Published online February 24 2016 doi:10.1371/journal.pone.0148613


Abstract

Hyperthermic laser ablation of recurrent glioblastoma leads to temporary disruption of the peritumoral blood brain barrier

Background

Poor central nervous system penetration of cytotoxic drugs due to the blood brain barrier (BBB) is a major limiting factor in the treatment of brain tumors. Most recurrent glioblastomas (GBM) occur within the peritumoral region. In this study, we describe a hyperthemic method to induce temporary disruption of the peritumoral BBB that can potentially be used to enhance drug delivery.

Methods

Twenty patients with probable recurrent GBM were enrolled in this study. Fourteen patients were evaluable. MRI-guided laser interstitial thermal therapy was applied to achieve both tumor cytoreduction and disruption of the peritumoral BBB. To determine the degree and timing of peritumoral BBB disruption, dynamic contrast-enhancement brain MRI was used to calculate the vascular transfer constant (Ktrans) in the peritumoral region as direct measures of BBB permeability before and after laser ablation. Serum levels of brain-specific enolase, also known as neuron-specific enolase, were also measured and used as an independent quantification of BBB disruption.

Results

In all 14 evaluable patients, Ktrans levels peaked immediately post laser ablation, followed by a gradual decline over the following 4 weeks. Serum BSE concentrations increased shortly after laser ablation and peaked in 1–3 weeks before decreasing to baseline by 6 weeks.

Conclusions

The data from our pilot research support that disruption of the peritumoral BBB was induced by hyperthemia with the peak of high permeability occurring within 1–2 weeks after laser ablation and resolving by 4–6 weeks. This provides a therapeutic window of opportunity during which delivery of BBB-impermeant therapeutic agents may be enhanced.

Trial Registration

ClinicalTrials.gov NCT01851733

“Hyperthermic laser ablation of recurrent glioblastoma leads to temporary disruption of the peritumoral blood brain barrier” by Eric C. Leuthardt, Chong Duan, Michael J. Kim, Jian L. Campian, Albert H. Kim, Michelle M. Miller-Thomas, Joshua S. Shimony, and David D. Tran in PLOS ONE. Published online February 24 2016 doi:10.1371/journal.pone.0148613
