Network Analysis of the Brain may Explain Features of Autism

EEGs show structural differences in brain connections.

A look at how the brain processes information finds a distinct pattern in children with autism spectrum disorders. Using EEGs to track the brain’s electrical cross-talk, researchers from Boston Children’s Hospital have found a structural difference in brain connections. Compared with neurotypical children, those with autism have multiple redundant connections between neighboring brain areas at the expense of long-distance links.

The study, using a “network analysis” like that used to study airlines or electrical grids, may help in understanding some classic behaviors in autism. It was published February 27 in BioMed Central’s open access journal BMC Medicine, accompanied by a commentary.

“We examined brain networks as a whole in terms of their capacity to transfer and process information,” says Jurriaan Peters, MD, of the Department of Neurology at Boston Children’s Hospital, who is co-first author of the paper with Maxime Taquet, a PhD student in Boston Children’s Computational Radiology Laboratory. “What we found may well change the way we look at the brains of autistic children.”

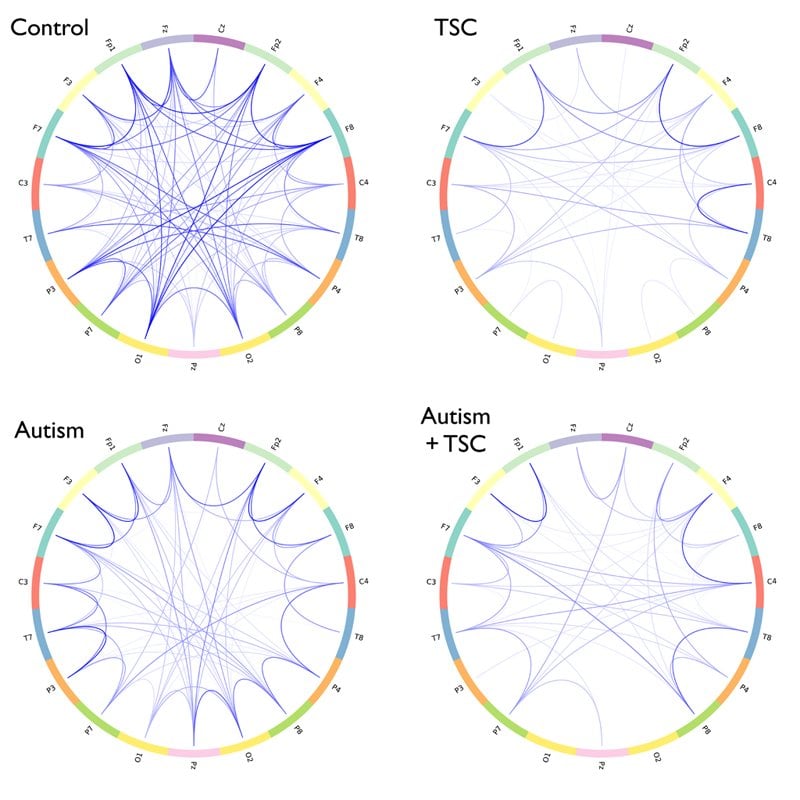

The image shows diagrams of the brain connectivity in children with autism and children without. The caption best describes the image.

Brain Connections in Autism: This image illustrates connectivity between 19 different brain regions, based on EEG data from healthy neurotypical children and children with autism and/or tuberous sclerosis (TSC). Both groups of children with TSC show fewer brain connections overall, while both groups with autism have more connections between adjacent areas of the brain and fewer connections across distant areas. Children with both TSC and autism have a “double hit.” Credited to Boston Children’s Hospital.

Peters, Taquet and senior authors Simon Warfield, PhD, of the Computational Radiology Laboratory and Mustafa Sahin, MD, PhD, of Neurology, analyzed EEG recordings from two groups of autistic children: 16 children with classic autism, and 14 children whose autism is part of a genetic syndrome known as tuberous sclerosis complex (TSC). They compared these readings with EEGs from two control groups—46 healthy neurotypical children and 29 children with TSC but not autism.

In both groups with autism, there were more short-range connections within different brain region, but fewer connections linking far-flung areas.

A brain network that favors short-range over long-range connections seems to be consistent with autism’s classic cognitive profile—a child who excels at specific, focused tasks like memorizing streets, but who cannot integrate information across different brain areas into higher-order concepts.

“For example, a child with autism may not understand why a face looks really angry, because his visual brain centers and emotional brain centers have less cross-talk,” Peters says. “The brain cannot integrate these areas. It’s doing a lot with the information locally, but it’s not sending it out to the rest of the brain.”

Network analysis, a hot emerging branch of cognitive neuroscience, showed a quality called “resilience” in the children with autism—the ability to find multiple ways to get from point A to point B through redundant pathways.

“Much like you can still travel from Boston to Brussels even if London Heathrow is shut down, by going through New York’s JFK airport for example, information can continue to be transferred between two regions of the brain of children with autism,” says Taquet. “In such a network, no hub plays a specific role, and traffic may flow along many redundant routes.”

This quality of redundancy is consistent with cellular and molecular evidence for decreased “pruning” of brain connections in autism. While it may be good for an airline, it may indicate a brain that responds in the same way to many different kinds of situations and is less able to focus on the stimuli that are most important.

“It’s a simpler, less specialized network that’s more rigid, less able to respond to stimulation from the environment,” says Peters.

The study showed that both groups of children with tuberous sclerosis complex had reduced connectivity overall, but only those who also had autism had the pattern of increased short-range versus long-range connections.

Under a recently announced NIH Autism Center of Excellence Grant, Peters and his colleagues will repeat the analysis as part of a multicenter study, taking EEG recordings prospectively under uniform conditions.

The current study builds on recent work by Peters, Sahin and colleagues, which imaged nerve fibers in autistic patients and showed structural abnormalities in brain connectivity. Other recent work at Boston Children’s, led by Frank Duffy, PhD, of Neurology, looked at “coherence,” or the degree of synchrony between any two given EEG signals, and found altered connectivity between brain regions in children with autism.

Yet another recent study, led by Boston Children’s informatics researcher William Bosl, PhD, and Charles A. Nelson, PhD, research director of the Developmental Medicine Center, looked at the degree of randomness in EEG signals, an indirect indicator of connectivity, and found patterns that distinguished infants at increased risk for autism from controls.

Notes about this autism research

The current study was funded by the National Institutes of Health (grant #s R01 RR021885, R01 LM010033, R03 EB008680, UL1 RR025758 to Warfield; P20 RFA-NS-12-006, 1U01NS082320-01 to Sahin and Peters); the National Institute of Mental Health (grant #K23MH094517 to coauthor Shafali Jeste); the National Institute on Deafness and Other Communication Disorders (grant #DC 10290 to Charles Nelson, PhD) and the Department of Defense (grant #W81XWH-11-1-0365 to Nelson).

Original press release submitted directly to Neuroscience News by Meghan Weber.
Thank you Meghan Weber.

Contact: Meghan Weber – Boston Children’s Hospital
Source: Boston Children’s Hospital press release
Image Source: Image courtesy of Boston Children’s Hospital.
Original Research: Full open access research (PDF) for “Brain functional networks in syndromic and non-syndromic autism: a graph theoretical study of EEG connectivity” by Jurriaan M Peters, Maxime Taquet, Clemente Vega, Shafali S Jeste, Ivan Sanchez Fernandez, Jacqueline Tan, Charles A Nelson, Mustafa Sahin and Simon K Warfield in BMC Medicine. Published online February 27 2013 doi:10.1186/1741-7015-11-54
