Structure of Tumor Suppressing Protein Identified

An international group of researchers led by Carnegie Mellon University physicists Mathias Lösche and Frank Heinrich have established the structure of an important tumor suppressing protein, PTEN. Their findings provide new insights into how the protein regulates cell growth and how mutations in the gene that encodes the protein can lead to cancer. The study is published online in Structure, and will appear in the Oct. 6 issue.

Phosphatase and tensin homolog (PTEN) is a known tumor suppressing protein that is encoded by the PTEN gene. When expressed normally, the protein acts as an enzyme at the cell membrane, instigating a complex biochemical reaction that regulates the cell cycle and prevents cells from growing or dividing in an unregulated fashion. Each cell in the body contains two copies of the PTEN gene, one inherited from each parent. When there is a mutation in one or both of the PTEN genes, it interferes with the protein’s enzymatic activity and, as a result inhibits its tumor suppressing ability.

“Membrane-incorporated and membrane-associated proteins like PTEN make up one-third of all proteins in our body. Many important functions in health and disease depend on their proper functioning,” said Lösche, who with other researchers within Carnegie Mellon’s Center for Membrane Biology and Biophysics aim to understand the structure and function of cell membranes and membrane proteins. “Despite PTEN’s importance in human physiology and disease, there is a critical lack of understanding of the complex mechanisms that govern its activity.”

Recently, researchers led by Pier Paolo Pandolfi at Harvard Medical School found that PTEN’s tumor suppressing activity becomes elevated when two copies of the protein bind together, forming a dimeric protein.

“PTEN dimerization may be the key to understanding an individual’s susceptibility for PTEN-sensitive tumors,” said Lösche, a professor of physics and biomedical engineering at Carnegie Mellon.

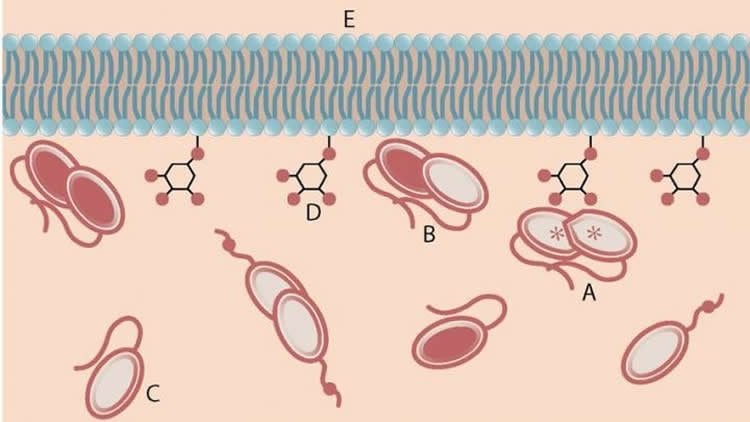

This is an activated PTEN dimer.
An activated PTEN dimer that contains two non-mutant proteins (A) can transform the functional lipid (D) on the cellular membrane (E) into a chemical form that tunes down cancer predilection. Dimers that contain a mutated protein (B), or PTEN monomers can not transform the functional lipid. Credit: Carnegie Mellon University.

In order to reveal how dimerization improves PTEN’s ability to thwart tumor development, researchers needed to establish the protein’s dimeric structure. Normally, protein structure is identified using crystallography, but attempts to crystallize the PTEN dimer had failed. Lösche and colleagues used a different technique called small-angle X-ray scattering (SAXS) which gains information about a protein’s structure by scattering X-rays through a solution containing the protein. They then used computer modeling to establish the dimer’s structure.

They found that in the PTEN dimers, the C-terminal tails of the two proteins may bind the protein bodies in a cross-wise fashion, which makes them more stable. As a result, they can more efficiently interact with the cell membrane, regulate cell growth and suppress tumor formation.

Now that more is known about the structure of the PTEN dimer, researchers will be able to use molecular biology tools to investigate the atomic-scale mechanisms of tumor formation facilitated by PTEN mutations. The researchers also hope that their findings will offer up a new avenue for cancer therapeutics.

[divider]About this genetics and cancer research[/divider]

In addition to Lösche and Heinrich, who are also research associates at the National Institute of Standards and Technology (NIST), and Pandolfi, co-authors of the study include: Srinivas Chakravarthy of Argonne National Laboratory and the Illinois Institute of Technology; Hirsh Nanda of Carnegie Mellon and NIST; Antonella Papa of Monash University in Melbourne; Alonzo H. Ross of the University of Massachusetts Medical School; and Rakesh K. Harishchandra and Arne Gericke of Worcester Polytechnic Institute.

Funding: The research was funded by the Department of Commerce, the National Institutes of Health’s National Institute of General Medical Sciences (GM101647) and National Institute of Neurological Disorders and Stroke (NS021716), and the National Science Foundation (1216827). The research used resources of the Advanced Photon Source, a U.S. Department of Energy (DOE) Office of Science User Facility and the NIGMS-supported BioCAT facility.

Source: Jocelyn Duffy – Carnegie Mellon Univeristy
Image Credit: The image is in the public domain
Original Research: Abstract for “The PTEN Tumor Suppressor Forms Homodimers in Solution” by Frank Heinrich, Srinivas Chakravarthy, Hirsh Nanda, Antonella Papa, Pier Paolo Pandolfi, Alonzo H. Ross, Rakesh K. Harishchandra, Arne Gericke, and Mathias Lösche in Structure. Published online August 20 2015 doi:10.1016/j.str.2015.07.012


The PTEN Tumor Suppressor Forms Homodimers in Solution

•The PTEN tumor suppressor forms a homodimer in solution
•SAXS/Rosetta determine a unique dimer structure with planar membrane binding surface
•PTEN’s disordered regulatory C-terminal tail is well folded on the dimer
•A structural basis emerges for the PTEN dimer hypothesis and cellular control of PTEN

As the phosphoinositol-3-kinase antagonist in the PI3K pathway, the PTEN tumor suppressor exerts phosphatase activity on diacylphosphatidylinositol triphosphate in the plasma membrane. Even partial loss of this activity enhances tumorigenesis, but a mechanistic basis for this aspect of PTEN physiology has not yet been established. It was recently proposed that PTEN mutations have dominant-negative effects in cancer via PTEN dimers. We show that PTEN forms homodimers in vitro, and determine a structural model of the complex from SAXS and Rosetta docking studies. Our findings shed new light on the cellular control mechanism of PTEN activity. Phosphorylation of the unstructured C-terminal tail of PTEN reduces PTEN activity, and this result was interpreted as a blockage of the PTEN membrane binding interface through this tail. The results presented here instead suggest that the C-terminal tail functions in stabilizing the homodimer, and that tail phosphorylation interferes with this stabilization.

“The PTEN Tumor Suppressor Forms Homodimers in Solution” by Frank Heinrich, Srinivas Chakravarthy, Hirsh Nanda, Antonella Papa, Pier Paolo Pandolfi, Alonzo H. Ross, Rakesh K. Harishchandra, Arne Gericke, and Mathias Lösche in Structure. Published online August 20 2015 doi:10.1016/j.str.2015.07.012
