Researchers Demonstrate Direct Brain-to-Brain Communication in Human Subjects

Advanced neuro-technologies including wireless EEG and robotized TMS enable first successful transmission.

In a first-of-its-kind study, an international team of neuroscientists and robotics engineers have demonstrated the viability of direct brain-to-brain communication in humans. Recently published in PLOS ONE the highly novel findings describe the successful transmission of information via the internet between the intact scalps of two human subjects – located 5,000 miles apart.

“We wanted to find out if one could communicate directly between two people by reading out the brain activity from one person and injecting brain activity into the second person, and do so across great physical distances by leveraging existing communication pathways,” explains coauthor Alvaro Pascual-Leone, MD, PhD, Director of the Berenson-Allen Center for Noninvasive Brain Stimulation at Beth Israel Deaconess Medical Center (BIDMC) and Professor of Neurology at Harvard Medical School. “One such pathway is, of course, the internet, so our question became, ‘Could we develop an experiment that would bypass the talking or typing part of internet and establish direct brain-to-brain communication between subjects located far away from each other in India and France ?'”

It turned out the answer was “yes.”

In the neuroscientific equivalent of instant messaging, Pascual-Leone, together with Giulio Ruffini and Carles Grau leading a team of researchers from Starlab Barcelona, Spain, and Michel Berg, leading a team from Axilum Robotics, Strasbourg, France, successfully transmitted the words “hola” and “ciao” in a computer-mediated brain-to-brain transmission from a location in India to a location in France using internet-linked electroencephalogram (EEG) and robot-assisted and image-guided transcranial magnetic stimulation (TMS) technologies.

Previous studies on EEG-based brain-computer interaction (BCI) have typically made use of communication between a human brain and computer. In these studies, electrodes attached to a person’s scalp record electrical currents in the brain as a person realizes an action-thought, such as consciously thinking about moving the arm or leg. The computer then interprets that signal and translates it to a control output, such as a robot or wheelchair.

But, in this new study, the research team added a second human brain on the other end of the system. Four healthy participants, aged 28 to 50, participated in the study. One of the four subjects was assigned to the brain-computer interface (BCI) branch and was the sender of the words; the other three were assigned to the computer-brain interface (CBI) branch of the experiments and received the messages and had to understand them.

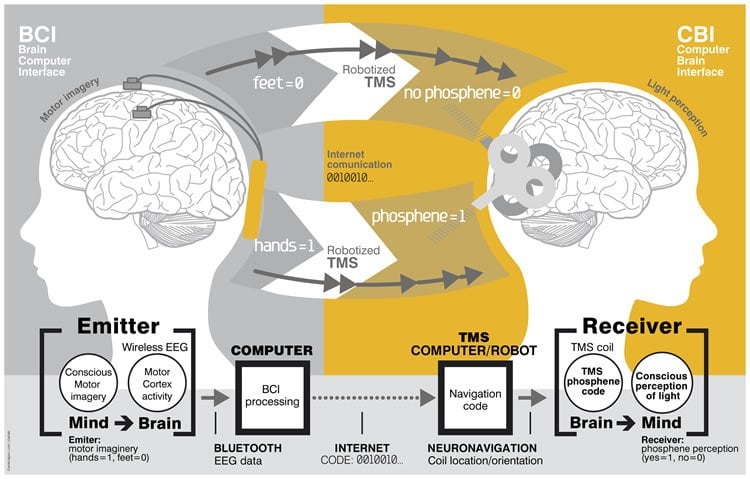

This image is a diagram which shows how the communication system works.

Brain-to-brain (B2B) communication system overview.
On the left, the BCI subsystem is shown schematically, including electrodes over the motor cortex and the EEG amplifier/transmitter wireless box in the cap. Motor imagery of the feet codes the bit value 0, of the hands codes bit value 1. On the right, the CBI system is illustrated, highlighting the role of coil orientation for encoding the two bit values. Communication between the BCI and CBI components is mediated by the internet. Credit Grau et al./PLOS ONE.

Using EEG, the research team first translated the greetings “hola” and “ciao” into binary code and then emailed the results from India to France. There a computer-brain interface transmitted the message to the receiver’s brain through noninvasive brain stimulation. The subjects experienced this as phosphenes, flashes of light in their peripheral vision. The light appeared in numerical sequences that enabled the receiver to decode the information in the message, and while the subjects did not report feeling anything, they did correctly receive the greetings.

A second similar experiment was conducted between individuals in Spain and France, with the end result a total error rate of just 15 percent, 11 percent on the decoding end and five percent on the initial coding side.

“By using advanced precision neuro-technologies including wireless EEG and robotized TMS, we were able to directly and noninvasively transmit a thought from one person to another, without them having to speak or write,” says Pascual-Leone. “This in itself is a remarkable step in human communication, but being able to do so across a distance of thousands of miles is a critically important proof-of-principle for the development of brain-to-brain communications. We believe these experiments represent an important first step in exploring the feasibility of complementing or bypassing traditional language-based or motor-based communication.”

Notes about this neuroscience and technology research

Study coauthors include Romuald Ginhous, Alejandro Riera, Thanh Lam Nguyen, Hubert Chauvat, and Julia L. Amengual.

This work was partly supported by the EU FP7 FET Open HIVE project, the Starlab Kolmogorov project, and the Neurology Department of the Hospital de Bellvitge.

Contact: Bonnie Prescott – Beth Israel Deaconess Medical Center
Source: Beth Israel Deaconess Medical Center press release
Image Source: The image is credited to Grau et al./PLOS ONE and is adapted from the open access research paper
Original Research: Full open access research for “Conscious Brain-to-Brain Communication in Humans Using Non-Invasive Technologies” by Carles Grau, Romuald Ginhoux, Alejandro Riera, Thanh Lam Nguyen, Hubert Chauvat, Michel Berg, Julià L. Amengual, Alvaro Pascual-Leone, and Giulio Ruffini in . Published online August 19 2014 doi:10.1371/journal.pone.0105225

Open Access Neuroscience Abstract

Conscious Brain-to-Brain Communication in Humans Using Non-Invasive Technologies

Human sensory and motor systems provide the natural means for the exchange of information between individuals, and, hence, the basis for human civilization. The recent development of brain-computer interfaces (BCI) has provided an important element for the creation of brain-to-brain communication systems, and precise brain stimulation techniques are now available for the realization of non-invasive computer-brain interfaces (CBI). These technologies, BCI and CBI, can be combined to realize the vision of non-invasive, computer-mediated brain-to-brain (B2B) communication between subjects (hyperinteraction). Here we demonstrate the conscious transmission of information between human brains through the intact scalp and without intervention of motor or peripheral sensory systems. Pseudo-random binary streams encoding words were transmitted between the minds of emitter and receiver subjects separated by great distances, representing the realization of the first human brain-to-brain interface. In a series of experiments, we established internet-mediated B2B communication by combining a BCI based on voluntary motor imagery-controlled electroencephalographic (EEG) changes with a CBI inducing the conscious perception of phosphenes (light flashes) through neuronavigated, robotized transcranial magnetic stimulation (TMS), with special care taken to block sensory (tactile, visual or auditory) cues. Our results provide a critical proof-of-principle demonstration for the development of conscious B2B communication technologies. More fully developed, related implementations will open new research venues in cognitive, social and clinical neuroscience and the scientific study of consciousness. We envision that hyperinteraction technologies will eventually have a profound impact on the social structure of our civilization and raise important ethical issues.

“Conscious Brain-to-Brain Communication in Humans Using Non-Invasive Technologies” by Carles Grau, Romuald Ginhoux, Alejandro Riera, Thanh Lam Nguyen, Hubert Chauvat, Michel Berg, Julià L. Amengual, Alvaro Pascual-Leone, and Giulio Ruffini in , August 19 2014 doi:10.1371/journal.pone.0105225.
