New Guidance System Could Improve Minimally Invasive Surgery

Johns Hopkins researchers have devised a computerized process that could make minimally invasive surgery more accurate and streamlined using equipment already common in the operating room.

In a report published recently in the journal Physics in Medicine and Biology, the researchers say initial testing of the algorithm shows that their image-based guidance system is potentially superior to conventional tracking systems that have been the mainstay of surgical navigation over the last decade.

“Imaging in the operating room opens new possibilities for patient safety and high-precision surgical guidance,” says Jeffrey Siewerdsen, Ph.D., a professor of biomedical engineering in the Johns Hopkins University School of Medicine. “In this work, we devised an imaging method that could overcome traditional barriers in precision and workflow. Rather than adding complicated tracking systems and special markers to the already busy surgical scene, we realized a method in which the imaging system is the tracker and the patient is the marker.”

Siewerdsen explains that current state-of-the-art surgical navigation involves an often cumbersome process in which someone — usually a surgical technician, resident or fellow — manually matches points on the patient’s body to those in a preoperative CT image. This process, called registration, enables a computer to orient the image of the patient within the geometry of the operating room. “The registration process can be error-prone, require multiple manual attempts to achieve high accuracy and tends to degrade over the course of the operation,” Siewerdsen says.

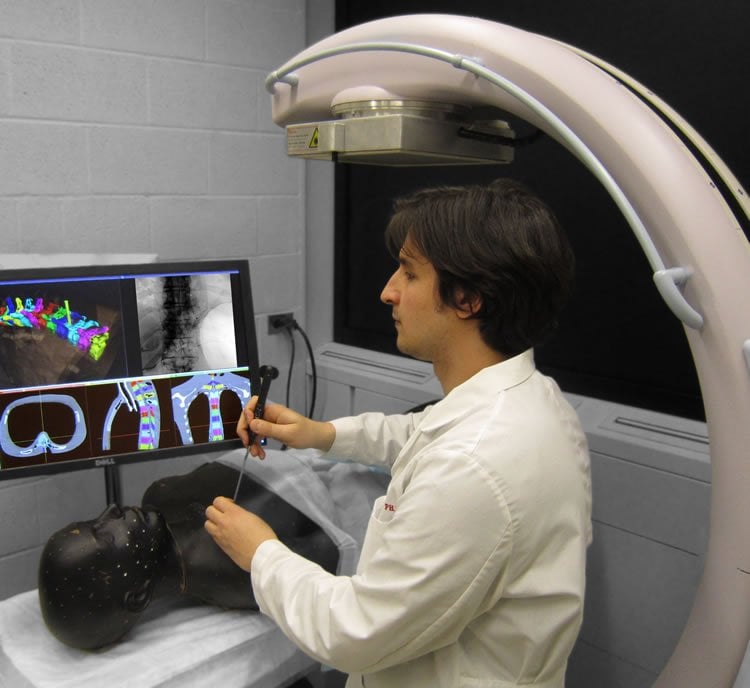

In this image, a student demonstrates the new technology.
Graduate student Ali Uneri demonstrates the new surgical guidance system. Credit Johns Hopkins Medicine.

Siewerdsen’s team used a mobile C-arm, already a piece of equipment used in many surgeries, to develop an alternative. They suspected that a fast, accurate registration algorithm could be devised to match two-dimensional X-ray images to the three-dimensional preoperative CT scan in a way that would be automatic and remain up to date throughout the operation.

Starting with a mathematical algorithm they had previously developed to help surgeons locate specific vertebrae during spine surgery, the team adapted the method to the task of surgical navigation. When they tested the method on cadavers, they found a level of accuracy better than 2 millimeters and consistently better than a conventional surgical tracker, which has 2 to 4 millimeters of accuracy in surgical settings.

“The breakthrough came when we discovered how much geometric information could be extracted from just one or two X-ray images of the patient,” says Ali Uneri, a graduate student in the Department of Computer Science in the Johns Hopkins University Whiting School of Engineering. “From just a single frame, we achieved better than 3 millimeters of accuracy, and with two frames acquired with a small angular separation, we could provide surgical navigation more accurately than a conventional tracker.”

The team investigated how small the angle between the two images could be without compromising accuracy and found that as little as 15 degrees was sufficient to provide better than 2 millimeters of accuracy.

An additional advantage of the system, Uneri says, is that the two X-ray images can be acquired at extremely low dose of radiation — far below what is needed for a visually clear image, but enough for the algorithm to extract accurate geometric information.

The team is translating the method to a system suitable for clinical studies. While the system could potentially be used in a wide range of procedures, Siewerdsen expects it to be most useful in minimally invasive surgeries, such as spinal and intracranial neurosurgery.

A. Jay Khanna, M.D., an associate professor of orthopaedic surgery and biomedical engineering at the Johns Hopkins University School of Medicine, evaluated the system in its first application to spine surgery. “Accurate surgical navigation is essential to high-quality minimally invasive surgery,” he says. “But conventional navigation systems can present a major cost barrier and a bottleneck to workflow. This system could provide accurate navigation with simple systems that are already in the OR and with a sophisticated registration algorithm under the hood.”

Ziya Gokaslan, M.D., a professor of neurosurgery at the Johns Hopkins University School of Medicine, is leading the translational research team. “We are already seeing how intraoperative imaging can be used to enhance workflow and improve patient safety,” he says. “Extending those methods to the task of surgical navigation is very promising, and it could open the availability of high-precision guidance to a broader spectrum of surgeries than previously available.”

Notes about this neurology and technology research

Other authors on the paper were Yoshito Otake and Adam S. Wang of The Johns Hopkins University and Gerhard Kleinszig and Sebastian Vogt of Siemens Healthcare.

This research was supported by grants from the National Institutes of Health and an academic-industry partnership with Siemens Healthcare.

Contact: Catherine Kolf – Johns Hopkins Medicine
Source: Johns Hopkins Medicine press release
Image Source: The image is adapted from the Johns Hopkins Medicine press release.
Original Research: Full open access research for “3D–2D registration for surgical guidance: effect of projection view angles on registration accuracy” by A Uneri, Y Otake, A S Wang, G Kleinszig, S Vogt, A J Khanna and J H Siewerdsen in Physics in Medicine and Biology. Published online December 19 2013 doi:10.1088/0031-9155/59/2/271

Open Access Neuroscience Abstract

3D–2D registration for surgical guidance: effect of projection view angles on registration accuracy

An algorithm for intensity-based 3D–2D registration of CT and x-ray projections is evaluated, specifically using single- or dual-projection views to provide 3D localization. The registration framework employs the gradient information similarity metric and covariance matrix adaptation evolution strategy to solve for the patient pose in six degrees of freedom. Registration performance was evaluated in an anthropomorphic phantom and cadaver, using C-arm projection views acquired at angular separation, Δθ, ranging from ~0°–180° at variable C-arm magnification. Registration accuracy was assessed in terms of 2D projection distance error and 3D target registration error (TRE) and compared to that of an electromagnetic (EM) tracker. The results indicate that angular separation as small as Δθ ~10°–20° achieved TRE <2 mm with 95% confidence, comparable or superior to that of the EM tracker. The method allows direct registration of preoperative CT and planning data to intraoperative fluoroscopy, providing 3D localization free from conventional limitations associated with external fiducial markers, stereotactic frames, trackers and manual registration. "3D–2D registration for surgical guidance: effect of projection view angles on registration accuracy" by A Uneri, Y Otake, A S Wang, G Kleinszig, S Vogt, A J Khanna and J H Siewerdsen in Physics in Medicine and Biology. doi:10.1088/0031-9155/59/2/271
