Nanoscale-tipped high-aspect-ratio vertical microneedle electrodes for intracellular recordings.
Our current understanding of how the brain works is very poor. The electrical signals travel around the brain and throughout the body, and the electrical properties of the biological tissues are studied using electrophysiology. For acquiring a large amplitude and a high quality of neuronal signals, intracellular recording is a powerful methodology compared to extracellular recording to measure the voltage or current across the cell membranes. Nanowire- and nanotube-based devices have been developed for the intracellular recording applications to demonstrate the advantages of these devices having high spatial resolution and high sensitivity.
However, length of these nanowire/nanotube electrode devices is currently limited to less than 10 µm due to process issues that occur during fabrication of high-aspect-ratio nanoscale devices, which are more than 10-µm long. Thus, conventional nanodevices are not applicable to neurons/cells within thick biological tissues, including brain slices and brain in vivo.

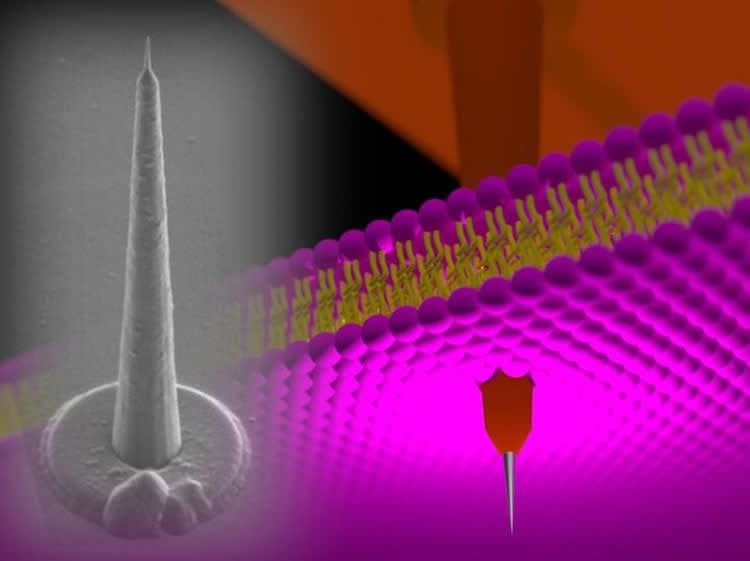

A research team in the Department of Electrical and Electronic Information Engineering and the Electronics-Inspired Interdisciplinary Research Institute (EIIRIS) at Toyohashi University of Technology has developed three-dimensional microneedle-based nanoscale-tipped electrodes (NTEs) that are longer than 100 µm. The needle length exceeds that of the conventional nanowire/nanotube-based intracellular devices, thus expanding the range of applications of nanodevices in intracellular recording, such as deep tissue penetration. Additionally, they perform intracellular recordings using muscle cells.
“A technological challenge in electrophysiology is intracellular recordings within a thick biological tissue. For example, a needle length of more than 40 µm is necessary for performing brain slice experiments. However, it is almost impossible to penetrate nanoscale diameter needles with a high-aspect-ratio, because of the long hair-like nanostructure that has insufficient stiffness. On the other hand, our NTE, which is 120-µm-long cone-shaped electrode, has sufficient stiffness to punch tissues and cells”, explains the first author PhD candidate, Yoshihiro Kubota.
The leader of the research team, Associate Professor Takeshi Kawano said “Although we demonstrated the preliminary results of our NTE device, the batch fabrication of such intracellular electrodes, which have a needle length more than 100 µm, should lead to an advancement in the device technologies. This will eventually lead to realization of multisite, depth-intracellular recordings for biological tissues, including brain slices and brain in vivo, which are beyond the capability of conventional intracellular devices.”
As addressed by the research team, the NTE has the potential to be used in cells that are deep within a biological tissue, including brain slice and brain in vivo, thus accelerating the understanding of the brain.
Funding: This work was supported by Grants-in-Aid for Scientific Research (S) (No. 20226010), (A) (No. 25249047), for Young Scientist (A) (No. 26709024), (B) (No. 22760251), and the PRESTO Program from JST. Yoshihiro Kubota was supported by the Leading Graduate School Program R03 of MEXT. Rika Numano was also supported by a Grant-in-Aid for Scientific Research (C) (No. 24590350), the Asahi Glass Foundation and the Takeda Science Foundation.
Source: Ryoji Inada – Toyohashi University of Technology
Image Credit: The image is credited to Toyohashi University of Technology.
Original Research: Abstract for “Nanoscale-tipped high-aspect-ratio vertical microneedle electrodes for intracellular recordings” by Yoshihiro Kubota, Hideo Oi, Hirohito Sawahata, Akihiro Goryu, Yoriko Ando, Rika Numano, Makoto Ishida and Takeshi Kawano in Small. Published online April 8 2016 doi:10.1002/smll.201600172
Nanoscale-tipped high-aspect-ratio vertical microneedle electrodes for intracellular recordings
Intracellular recording nanoscale electrode devices provide the advantages of a high spatial resolution and high sensitivity. However, the length of nanowire/nanotube-based nanoelectrodes is currently limited to <10 μm long due to fabrication issues for high-aspect-ratio nanoelectrodes. The concept reported here can address the technological limitations by fabricating >100 μm long nanoscale-tipped electrodes, which show the intracellular recording capability.
“Nanoscale-tipped high-aspect-ratio vertical microneedle electrodes for intracellular recordings” by Yoshihiro Kubota, Hideo Oi, Hirohito Sawahata, Akihiro Goryu, Yoriko Ando, Rika Numano, Makoto Ishida and Takeshi Kawano in Small. Published online April 8 2016 doi:10.1002/smll.201600172
