Turning the Ringer Off

New drug promises relief from epilepsy and tinnitus with fewer side effects.

A new drug may treat epilepsy and prevent tinnitus by selectively affecting potassium channels in the brain, UConn neurophysiologist Anastasios Tzingounis and colleagues report in the 10 June Journal of Neuroscience.

Epilepsy and tinnitus are both caused by overly excitable nerve cells. Healthy nerves have a built-in system that slams on the brakes when they get too excited. But in some people this braking system doesn’t work, and the nerves run amok, signaling so much that the brain gets overloaded and has a seizure (epilepsy) or hears phantom ringing (tinnitus). About 65 million people worldwide are affected by epilepsy. The numbers on tinnitus are not as clearcut, but the American Tinnutus Association estimates 2 million people have tinnitus so disabling they have troubling functioning in daily life.

The existing drugs to treat epilepsy don’t always work and can have serious side effects. One of the more effective, called retigabine, helps open KCNQ potassium channels, the “brakes” that shut down the signaling of overly excited nerves. Unfortunately, retigabine has awful side effects. Because of this, it’s usually only given to adults who don’t get relief from other epilepsy drugs.

Several years ago, doctors around the world began reporting infants with severe, brain-damaging seizures. Genetic testing showed that the children with this problem had genetic differences in their KCNQ potassium channels. Most existing anti-seizure drugs don’t work for these children, and few want to give babies retigabine because of its side affects, which include sleepiness, dizziness, problems with urination and hearing, and an unnerving tendency to turn people’s skin and eyes blue.

Tzingounis began working in 2013 with Thanos Tzounopoulos, a tinnitus expert at the University of Pittsburgh, on a new drug candidate. The drug, SF0034, was chemically identical to retigabine, except that it had an extra fluorine atom. A company called SciFluor had developed SF0034, and wanted to know whether the compound had promise against epilepsy and tinnitus. The two researchers thought the drug had the potential to be much better than retigabine.

The most important question to answer was whether SF0034 works on KCNQ potassium channels the same way retigabine does, and if so, was it better or worse that its parent compound? KCNQ potassium channels are found in the initial segment of axons, long nerve fibers that reach out and almost, but don’t quite, touch other cells. The gap between the axon and the other cell is called a synapse. When the cell wants to signal to the axon, it floods the synapse with sodium ions to create an electrical potential. When that electrical potential goes on too long, or gets out of hand, the KCNQ potassium channel kicks in. It opens, potassium ions flood out, and the sodium-induced electrical potential shuts down. In some types of epilepsy, the KCNQ potassium channels have trouble opening and shutting down runaway electrical potentials in the nerve synapse. Retigabine helps them open.

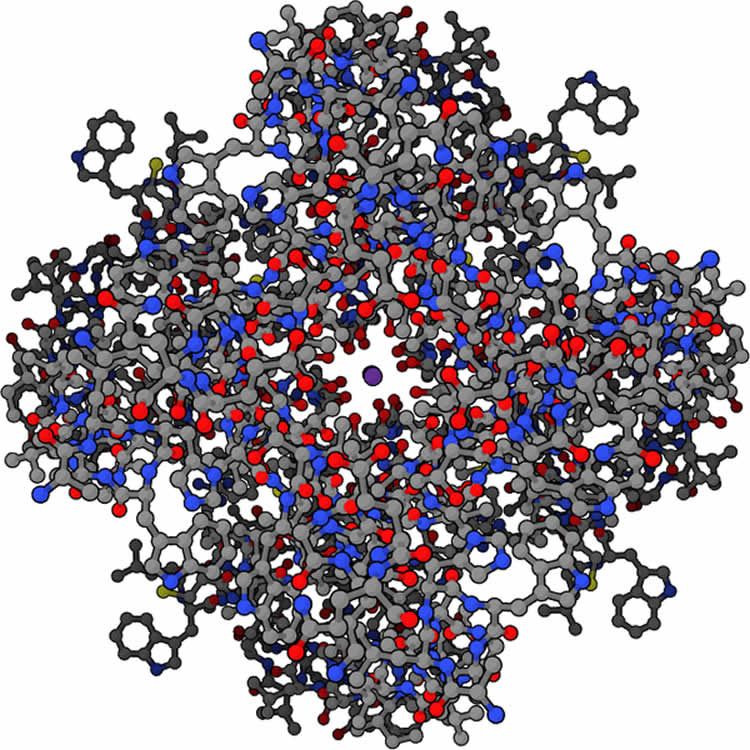

This image shows a top view of potassium ions (purple) moving through potassium channel.
There are five different kinds of KCNQ potassium channels in the body, but only two are important in epilepsy and tinnitus: KCNQ2 and KCNQ3. The problem with retigabine is that it acts on other KCNQ potassium channels as well. The image is for illustrative purposes only and shows a top view of potassium ions (purple) moving through potassium channel.

There are five different kinds of KCNQ potassium channels in the body, but only two are important in epilepsy and tinnitus: KCNQ2 and KCNQ3. The problem with retigabine is that it acts on other KCNQ potassium channels as well. That’s why it has so many unwanted side effects.

Tzingounis and Tzounopoulos first tested SF0034 in neurons, and found that it was more selective than retigabine. It seemed to open only KCNQ2 and KCNQ3 potassium channels, not affecting KCNQ 4 or 5. It was more effective than retigabine at preventing seizures in animals, and it was also less toxic.The results are promising, both for research and medicine. SciFluor now plans to start FDA trials with SF0034 and see if it is safe and effective in people. Treating epilepsy is the primary goal, but tinnitus can be similarly debilitating, and sufferers would be thrilled to have a decent treatment.

Tzingounis is pleased as well. “This [SF0034] gives me another tool, and a better tool, to dissect the function of these channels,” Tzingounis says. “And we need to find solutions for kids–and adults–with this problem,” he says.

About this neuropharmacology research

Funding The research was funded by the US National Institutes of Health and Department of Defense.

Source: Kim Krieger – University of Connecticut
Image Credit: Image is credited to the Bensaccount and is in the public domain
Original Research: Abstract for “Potent KCNQ2/3-Specific Channel Activator Suppresses In Vivo Epileptic Activity and Prevents the Development of Tinnitus” by Bopanna I. Kalappa, Heun Soh, Kevin M. Duignan, Takeru Furuya, Scott Edwards, Anastasios V. Tzingounis, and Thanos Tzounopoulos in Journal of Neuroscience. Published online June 10 2015 doi:10.1523/JNEUROSCI.5176-14.2015


Abstract

Potent KCNQ2/3-Specific Channel Activator Suppresses In Vivo Epileptic Activity and Prevents the Development of Tinnitus

Voltage-gated Kv7 (KCNQ) channels are voltage-dependent potassium channels that are activated at resting membrane potentials and therefore provide a powerful brake on neuronal excitability. Genetic or experience-dependent reduction of KCNQ2/3 channel activity is linked with disorders that are characterized by neuronal hyperexcitability, such as epilepsy and tinnitus. Retigabine, a small molecule that activates KCNQ2–5 channels by shifting their voltage-dependent opening to more negative voltages, is an US Food and Drug Administration (FDA) approved anti-epileptic drug. However, recently identified side effects have limited its clinical use. As a result, the development of improved KCNQ2/3 channel activators is crucial for the treatment of hyperexcitability-related disorders. By incorporating a fluorine substituent in the 3-position of the tri-aminophenyl ring of retigabine, we synthesized a small-molecule activator (SF0034) with novel properties. Heterologous expression of KCNQ2/3 channels in HEK293T cells showed that SF0034 was five times more potent than retigabine at shifting the voltage dependence of KCNQ2/3 channels to more negative voltages. Moreover, unlike retigabine, SF0034 did not shift the voltage dependence of either KCNQ4 or KCNQ5 homomeric channels. Conditional deletion of Kcnq2 from cerebral cortical pyramidal neurons showed that SF0034 requires the expression of KCNQ2/3 channels for reducing the excitability of CA1 hippocampal neurons. Behavioral studies demonstrated that SF0034 was a more potent and less toxic anticonvulsant than retigabine in rodents. Furthermore, SF0034 prevented the development of tinnitus in mice. We propose that SF0034 provides, not only a powerful tool for investigating ion channel properties, but, most importantly, it provides a clinical candidate for treating epilepsy and preventing tinnitus.

“Vagotomy and subsequent risk of Parkinson’s disease” by Elisabeth Svensson PhD, Erzsébet Horváth-Puhó PhD, Reimar W Thomsen PhD, Jens Christian Djurhuus DMSc, Lars Pedersen PhD, Per Borghammer DMSc and Henrik Toft Sørensen DMSc in Annals of Neurology. Published online June 2015 doi:10.1002/ana.24448
